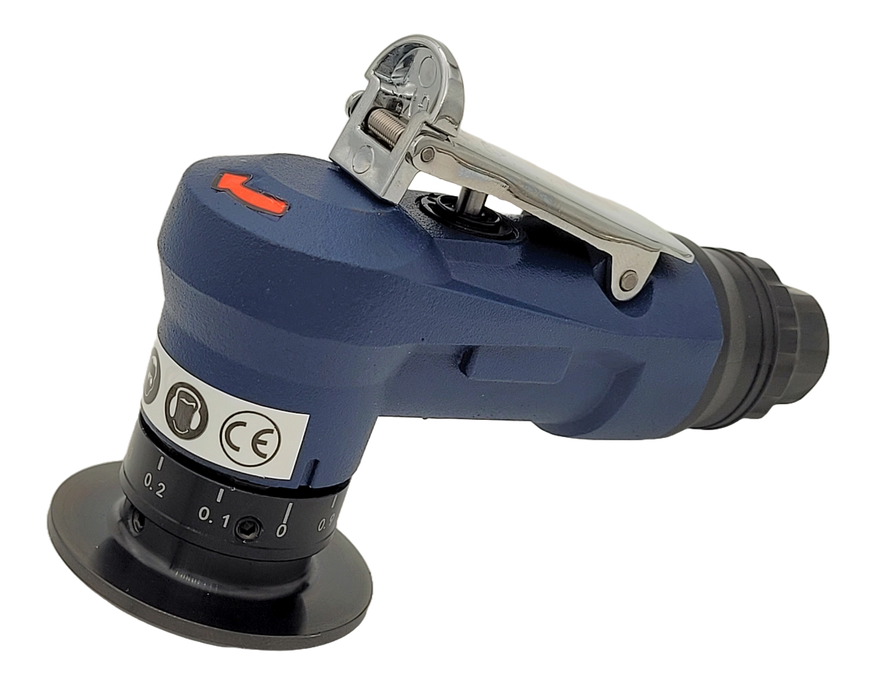

RAPID CHAMFERING MACHINE - BLUE

Any project becomes a Breeze with our Pneumatic chamfering tool . Greatly minimizes post operation Cnc machining time often needed on Laser/Plasma/water cut - plate, Box section & Cnc machined components.

Ease of use on Mild steel, Aluminum and plastic materials via the twin Tungsten carbide insertable cutter head.

These Tips can be upgraded to our Tool grade tips that cut tool steels like H13,D2,P20,01.

This hand held tool rapidly creates high quality chamfers along edges by a semi skilled hand, greatly reducing machine time and adding value to any Fabrication project.

Colour Blue - Great to colour coordinate between your multiple chamfer Machine tool setups on different materials

Specifications:
Item Type: Chamfering machine with Cast Metal Body
No-Load : 30000 (RPM)
Air Consumption: 0.22 (m3 / min)
Chamfering Ability: 0.1mm-1.5mm
Chamfer Aperture: ≥approx.7mm / 0.3in
Adjustable Depth: Approx. 0.1 -0.9mm / 0 -0.04in

Package List:
1 x Chamfering Machine - Blue Colour
1 x Set Installation Tools (Including 2 x Wrench)
2 x Carbide inserts suitable for Mild steel, plastic, Aluminum. (also sold in pack of 10 tips)
